MACD Crossover Explained for Crypto Charts
Nicolas Wolf
·
·
9 min read
A MACD crossover happens when the MACD line crosses the signal line. When the MACD line crosses above the signal line, it's called a bullish crossover — momentum is shifting upward. When it crosses below, it's a bearish crossover — momentum is weakening. But a crossover alone is not a buy or sell signal, and understanding why is what separates beginners from informed chart readers.
What Is MACD?
MACD stands for Moving Average Convergence Divergence. It was developed by Gerald Appel in the late 1970s and remains one of the most widely used momentum indicators in both traditional and crypto markets.
MACD is built from three components that work together to show the relationship between two moving averages of price:
| Component | What it is | Default setting |
|---|---|---|
| MACD line | 12-period EMA minus 26-period EMA | 12, 26 |
| Signal line | 9-period EMA of the MACD line | 9 |
| Histogram | MACD line minus signal line | — |
The MACD line moves faster because it is based on a shorter EMA (12 periods). The signal line moves slower because it averages the MACD line over 9 more periods. The crossover happens at the moment these two lines switch positions — and that's what traders watch for.
Bullish vs Bearish MACD Crossover
There are only two types of MACD crossover. The direction of the cross determines whether it is bullish or bearish:

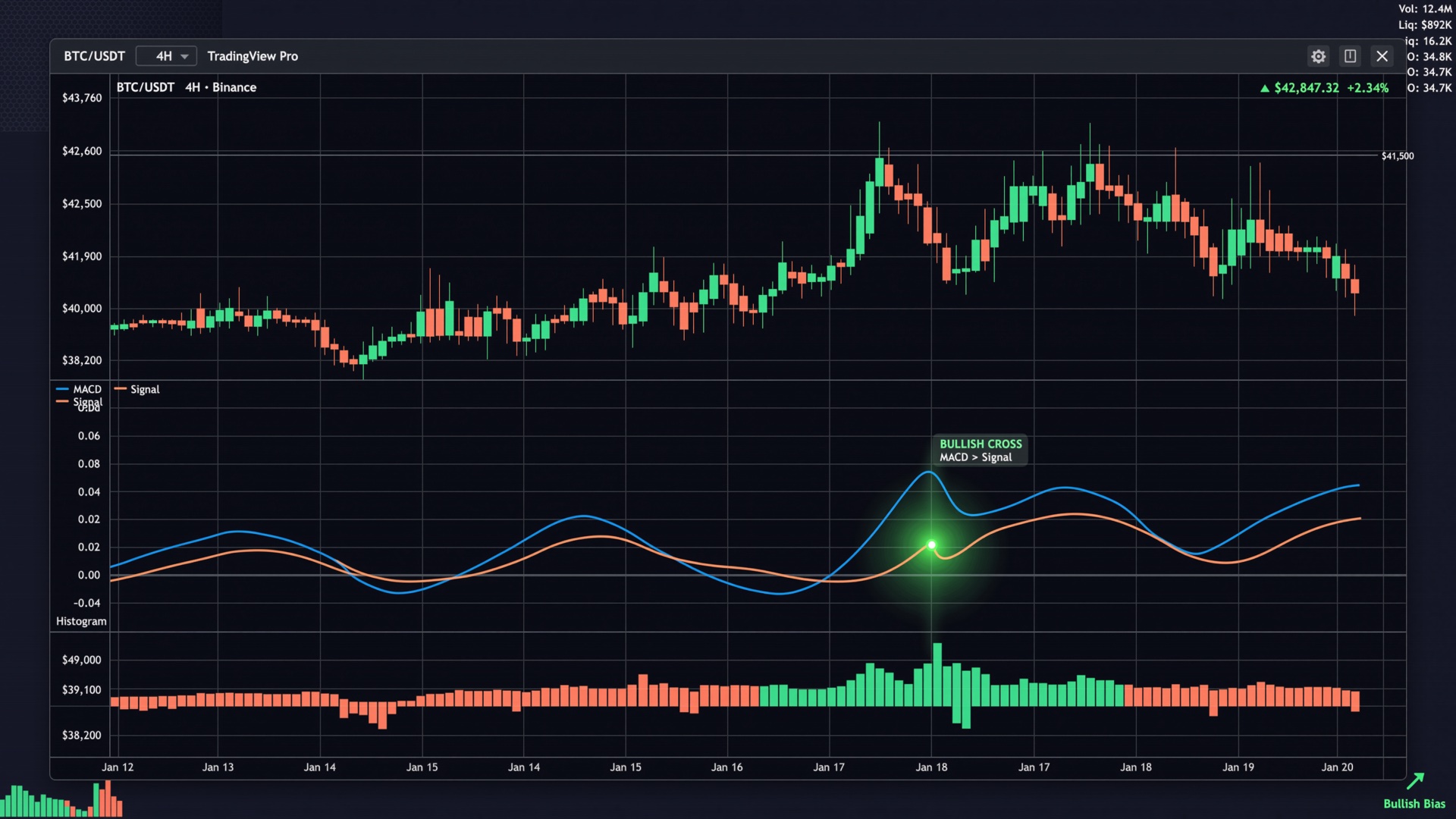

Bullish Crossover
MACD line crosses above the signal line. Short-term momentum is accelerating faster than medium-term momentum. Suggests buying pressure is increasing.
Bearish Crossover
MACD line crosses below the signal line. Short-term momentum is slowing relative to medium-term momentum. Suggests selling pressure may be increasing.
A bullish crossover does not mean the price will go up. A bearish crossover does not mean the price will go down. What both crossovers tell you is that momentum is shifting — which is useful context, not a prediction.
Key distinction: MACD measures the rate of change of price movement, not price direction itself. An asset can be falling while showing a bullish MACD crossover if the selling pressure is slowing down faster than the average.
How to Read the MACD Histogram
Most chart platforms display the MACD histogram as a series of bars between the MACD line and the signal line. The histogram is the clearest visual signal of what a crossover is about to happen:
- Histogram bars growing taller above zero — bullish momentum is strengthening, the two lines are moving further apart with MACD above signal
- Histogram bars shrinking toward zero from above — bullish momentum is weakening, a bearish crossover may be approaching
- Histogram bars growing below zero — bearish momentum is strengthening
- Histogram bars shrinking toward zero from below — bearish momentum is weakening, a bullish crossover may be approaching
Many experienced traders watch the histogram shrink toward zero as an early warning of an upcoming crossover — before the lines actually touch. This gives slightly more lead time than waiting for the crossover itself.
Where MACD Crossovers Matter Most
Not all MACD crossovers carry equal weight. The context in which a crossover happens changes its significance considerably:
Above or below the zero line
The zero line on the MACD panel represents the point where the 12-period EMA and 26-period EMA are equal. A crossover that happens above the zero line carries more weight as a bullish signal than one happening below it. A crossover below the zero line carries more weight as a bearish signal.
- Bullish crossover above zero — strongest bullish signal, both momentum and trend alignment
- Bullish crossover below zero — potential recovery signal, but still in bearish territory
- Bearish crossover below zero — strongest bearish signal, confirms continued downward pressure
- Bearish crossover above zero — momentum slowing in an uptrend, watch for confirmation
Timeframe matters
MACD crossovers on longer timeframes (daily, weekly) are considered more significant than those on shorter timeframes (1-hour, 15-minute). On very short timeframes, MACD can generate dozens of crossovers in a single day, most of which are noise. For beginners, the daily timeframe is the clearest place to start reading MACD crossovers.
See MACD Crossovers Explained in Real Time
ChartScope reads live BTC, ETH and altcoin charts and explains what the MACD, RSI, and other indicators are showing — in plain language. Free 3-day trial, no financial advice.
Try ChartScope Free →iOS · Free 3-day trial · Educational use only
Common Mistakes When Reading MACD Crossovers
1. Treating every crossover as a signal
In a choppy, sideways market, MACD generates frequent crossovers in both directions. Acting on every one would result in many false moves. MACD works better in trending markets where crossovers align with the broader direction.
Crypto-specific note: Crypto markets are more volatile than equities. MACD generates more false crossovers on short timeframes in crypto than in traditional markets. This is not a flaw in the indicator — it reflects the higher noise level in crypto price action.
2. Ignoring the broader trend
A bullish MACD crossover during a strong downtrend is a weak signal. A bearish crossover during a strong uptrend is also a weak signal. Always ask: what is the price doing on a higher timeframe? MACD crossovers aligned with the higher timeframe trend are stronger than those going against it.
3. Confusing the MACD line with price
The MACD line lives in a separate panel below your price chart and oscillates around zero. It does not show price — it shows the difference between two moving averages of price. A MACD reading of +500 does not mean the price is high; it means the 12-period EMA is 500 units above the 26-period EMA.
4. Using MACD alone
MACD is a lagging indicator — it is based on past prices. Combining it with RSI (which measures momentum magnitude) or with volume data gives a more complete picture. For example, a bullish MACD crossover confirmed by RSI rising from below 40 and increasing volume is a much stronger signal than a crossover in isolation.
MACD Crossover vs MACD Divergence
These are two different ways of reading MACD and they are often confused:
- MACD crossover — the MACD line and signal line cross each other. A timing signal about momentum direction.
- MACD divergence — price makes a new high or low but MACD does not confirm it. A signal that momentum and price are moving in opposite directions, suggesting a potential trend reversal.
Divergence is generally considered a stronger signal than a crossover because it requires price and momentum to disagree over multiple candles, not just a single intersection point.
MACD Settings for Crypto
The default MACD settings are (12, 26, 9) — these have been standard since the indicator was created and work well across most timeframes. Some crypto traders adjust these:
- Faster settings (e.g. 8, 21, 5) — more responsive, generates crossovers earlier, but also generates more false signals in choppy conditions
- Slower settings (e.g. 19, 39, 9) — fewer crossovers, each one carries more weight, better for longer-term trend confirmation
For beginners, leave MACD at the default (12, 26, 9). Adjusting settings without understanding why typically leads to over-fitting to recent price history, which does not persist.
How ChartScope Uses MACD
ChartScope reads the MACD line, signal line, and histogram for each coin you're analyzing and includes it as one of several indicators in the AI explanation. Rather than treating a crossover as a standalone signal, ChartScope looks at whether the crossover is:
- Happening above or below the zero line
- Confirmed or contradicted by RSI
- Aligned with the broader price structure (support/resistance, trend direction)
- Supported by volume patterns
The goal is to give you the full context behind what the chart is showing — not a prediction, but an explanation. Educational use only.
Frequently Asked Questions
What is a MACD crossover in crypto?
A MACD crossover happens when the MACD line crosses the signal line. When the MACD line crosses above the signal line it is a bullish crossover — short-term momentum is strengthening. When it crosses below it is a bearish crossover — momentum is weakening.
What does a bullish MACD crossover mean?
A bullish MACD crossover means the MACD line has moved above the signal line, indicating that short-term buying pressure is increasing relative to medium-term momentum. It does not guarantee a price increase — it signals a shift in momentum direction.
Is MACD crossover reliable for crypto?
MACD crossovers are useful context but not reliable in isolation for crypto. Crypto's higher volatility generates more false crossovers than traditional markets, especially on short timeframes. Combine with RSI and volume for better context.
What is the MACD histogram?
The MACD histogram shows the distance between the MACD line and the signal line as a bar chart. Growing bars mean momentum is accelerating. Shrinking bars mean momentum is slowing and a crossover may be approaching.
What MACD settings are best for crypto?
Default settings (12, 26, 9) are the right starting point for most timeframes. Faster settings like (8, 21, 5) work on shorter timeframes but generate more false signals. For beginners, always start with the defaults.
What is the difference between MACD crossover and divergence?
A crossover is when the MACD and signal lines cross each other — a momentum timing signal. Divergence is when price and MACD move in opposite directions over multiple candles — a signal that the current trend may be losing strength. Divergence is generally a stronger signal than a crossover.
